- Features of Pharma-sulation raw materials :
Basotect®, developed by BASF in Germany, is a flexible, open-cell foam made of melamine resin and is used as good thermal and sound insulation materials in various industrial and commercial fields.
Basotect® has excellent heat, cold and water resistance so it can be used in various environments. It’s lightweight and can be processed and formed even under extremely low temperature. It doesn’t use ozone depletion materials during production so it is also environment-friendly.
Properties resulting from the basic melamine resin
- Flame resistance & self extinguishability
- Heat resistance
- Constant physical properties over a wide temperature range
Properties resulting from the open cell foam
- Excellent thermal insulation properties
- Lightweight
- Flexibility at very low temperature
- Outstanding sound absorption

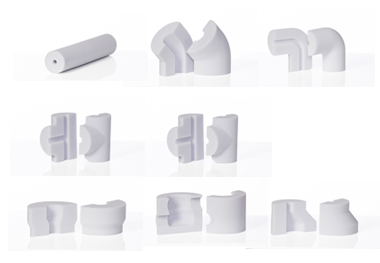

- Pharma-sulation M Product Line:
- Tube (Straight Pipe)
- Fitting
-
Elbow : 45° / 90°
Tee : Equal / Reducer
Reducer : Concentric / Eccentric
- Valve
-
The inner diameter and wall thickness of the melamine foam can be adjusted according to customer request.
Physical Properties
| Material | Melamine Resin | Heat Conductivity | < 0.035 W/mk at 0℃ |
|---|---|---|---|
| Service Temperature | < 240℃ | Inflammability | DIN 4102 B1 |
| Density | 9 +/-1.5 Kg/㎥ | Standard Thickness | 25,40,50,75mm |
Application
- Insulation for Pipe/Tube
- Insulation for Duct/Vessel
- Clean Room

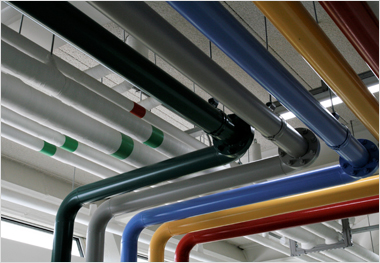

- Pharma-sulation P : PVC sheet
- Features
-
1. Use as insulation for pipe & duct
2. Lightweight, clean, anti-corrosion with high durability
3. Competitiveness in food/pharmaceutical plants compared to stainless steel
Advantages
- Simple installation
- Beautiful appearance (Various colors)
-
Durability
- Resistance to UV, heat, electric, alkaline/acid
- High strength and resistance to impact
- Stability to chemicals
- Flame retardant
- Safety (Has no sharp parts)
- Clean finish by PVDF tape
